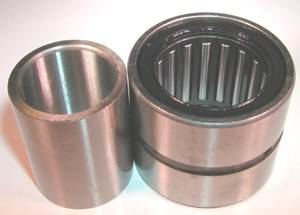

NA6904 UU Needle roller bearing 20x37x31


NA6904 UU Needle roller bearing 20x37x31

NA6904 UU Needle roller bearing 20x37x31 Part Number: Kit7899
Our Low Price: $14.95
Shipping Weight: 0.3 pounds


Quantity:

Rolling Bearing



Needle Roller Bearing
NA6904UU






Machined type needle roller bearing NA6904UU, the dimensions of the NA6904UU illustrated in the mechanical drawing shown below, the NA6904UU inner diameter is 20mm, the outer diameter is 37mm, width of the cone (inner ring) is 31mm, and the outer ring width is 17mm.

  • Item: Needle Roller Bearing
  • Dimensions: 20*37*31 mm/Metric
  • ID (inner diameter)/Bore=20mm
  • OD (outer diameter)=37mm
  • Width/Height/thickness=31mm
  • Size: 20mm x 37mm x 31mm
  • Type: Needle Roller Bearing NA6904UU
  • Closures: Rubber Sealed (both sides)
  • Quantity: One Bearing (inner cone is included)
Item Name d dr D B B1 Basic Load Rating Dimension
Cr (Dynamic) lbF Cor (Static) lbF Ds (min.) dh (max.)
NA6904UU 20 25 37 30 31 6480 11000 30 31
